Metal Flanges

Manufacturer of comprehensive range Metal Flanges, Look for Metal Flanges best price

your source for Metal Flanges, Manufacturer and Supplier of the most qualitative range of Metal Flanges

Grand Metal Corporation is acknowledged as a manufacturer, exporter & suppliers of Metal Flanges, available in a variety or grades, materials, and finishes, in metric and inch sizes. full line fastener distributor specializing in industrial products for companies involved in Equipment Manufacturing, Mining, Oil Refineries, Chemical manufacturing, Steel and Aluminium Manufacturing, Utilities and Transportation, and Industrial Construction.

Grand Metal Corporation carries a variety of Metal Flanges from Carbon Steel, Stainless Steel and High Nickel Alloy -F467 NiCu 400 (Monel) and commercial 18-8/304, 316L Stainless Steel. We supply Metal Flanges at Best suitable price.

Type of Metal Flanges like SORF, SWRF, WNRF, BLRF, LAP Joint, Reducing, Spectacle, Threaded & As per your Drawing in International Standard like ASTM, BS, IS Etc. as per ASA, DIN Table etc. with Manufacturer Test Certificate & IBR Test Certificate.

Metal Flanges By Standard

ANSI/ASME flange – The standard of ASME/ANSI B16.5 covers weld neck flange, threaded / screwed flange, slip on flange, socket weld flange, lap joint flange, blind flange for sizes up to 24" diameter, in rating c lasses of 150, 300, 400, 600, 900, 1500 and 2500. As for ASME/ANSI B16.47 Series A (MSS SP-44) and ASME/ANSI B16.47 Series B (API 605) for weld neck flange & blind flange, the size range is 26" through to 60" diameter. In series A, our class ratings are for 150lb, 300lb, 400lb, 600lb and 900lb. In series B, our class ratings are for 75lb, 150lb, 300lb, 400lb, 600lb and 900lb. Our ASME/ANSI B16.36 Orifice Flanges including weld neck, slip on, threaded (screwed) type, covers sizes from 1" to 24" in rating classes of 300lb, 400lb, 600lb, 900lb, 1500lb and 2500lb. And ASME/ANSI B16.48 (API 590) for Spacer, Blanks, Spectacle Blinds for size up to 24" diameter, in pressure class 150lb, 300lb, 400lb, 600lb and 900lb.

BS flange – The standard of BS10 Table D, E, F, H, J, K, R, S, T covers Slip On Boss, Plate Blind, Weld Neck, Plate Slip On, Bossed Screwed / Threaded for sizes up to NB4000. As for BS4504 Section 3.1: 1989 specification, we can offer Slip On Plate (Code 101), Blind / Blank (Code 105), Weld Neck (Code 111), Slip On (Code 112), Screwed / Threaded (Code 113) for size range is DN10 through to DN4000 diameter and class rating includes PN2.5, PN6, PN10, PN16, PN25, PN40, PN64, PN100. Our line also Involves BS1042 for Concentric Square Edge Orifice Plate, Quarter Circle Orifice Plate, Conical Entrance Orifice Plate, Restriction Orifice Plate, Segmental Orifice Plate and Eccentric Orifice Plate.

DIN flange – The standard of DIN flanges coversDIN 2527 PN6, PN10, PN16, PN25, PN40, PN64, PN100 for Blind Flange, DIN2573 PN6, DIN2576 PN10, DIN2543 PN16, DIN2544 PN25, DIN2545 PN40, DIN2502 PN16, DIN2503 PN25, DIN2503 PN40 for Flat Flange for welding (Slip On), DIN2630 PN1, DIN2630 PN2.5, DIN2631 PN6, DIN2632 PN10, DIN2633 PN16, DIN2634 PN25, DIN2635 PN40, DIN2636 PN64 , DIN2637 PN100, DIN2638 PN160, DIN2628 PN250, DIN2629 PN320, DIN2627 PN400 for Welding Neck Flange, DIN 2641 PN6, DIN2642 PN10 for Lapped (Lapped Joint) Flange, Plain Collar, DIN2652 PN6, DIN2653 PN10, DIN2655 PN25, DIN2656 PN40 for Loose Flange and Ring for Weld (Slip-On Flange and Plain Collar) , DIN2673PN10, DIN2674 PN16, DIN2675 PN25, DIN2676 PN40 for Loose Flange and Ring with Neck for Welding, DIN2558 PN6 for Oval Plain Threaded Flange, DIN2561 PN10, PN16 for Oval Flange with Neck Threaded, DIN2565 PN6, DIN2566 PN10, DIN2566 PN16, DIN2567 PN25, DIN2567 PN40, DIN2568 PN64, DIN2569 PN100 for Threaded Flange with Neck, DIN28115 PN10, PN25 for Long Neck Welding Flange and DIN86029 PN10, DIN86030 PN16 for Hubbed Slip On Flange for Welding for sizes up to DN4000 diameter. Our pressure rating includes PN1, PN2.5, PN6, PN10, PN16, PN25, PN40, PN64, PN100, PN160, PN250,

EN1092-1 flange – The standard of EN1092-1 flanges (EN flanges) involves Type 01 Plate (slip on) Flange for Welding, Type 02 Loose Plate Flanges with Weld On Plate Collar or for lapped pipe end, Type 04 Loose Plate Flanges with Weld Neck Collar, Type 05 Blind Flange, Type 11 Weld Neck Flange, Type 12 Hubbed Slip On Flanges for Welding, Type 13 Hubbed Threaded Flanges, Type 21 Integral Flange, Type 32 Weld on Plate Collar, Type 33 Lapped Pipe End, Type 34 Weld neck Collar, Type 35 Welding Neck, Type 36 Pressed collar with long neck, Type 37 Pressed Collar. The types of EN1092-1 flanges and collars are type no. 01, 02, 04, 05, 11, 12, 13, 21, 32, 33, 34, 35, 36 and 37. According to specification, type number 32, 33, 35, 36 and 37 are for use with type 02 flange and type number 34 for use with type 04 flange. Our available size range is from DN10 up to DN4000 diameter and pressure rating includes PN2.5, PN6, PN10, PN16, PN25, PN40, PN64, PN100, PN160, PN250, PN320, PN400.

JIS flange – The standard of JIS B2220 covers blind flange (BL), slip on flange (SOP), plate flange (PL) and weld neck flange (WN) for sizes from 10A up to 1500A diameter, in rating classes of 2K, 5K, 10K, 16K, 20K, 30K, 40K and 63K.

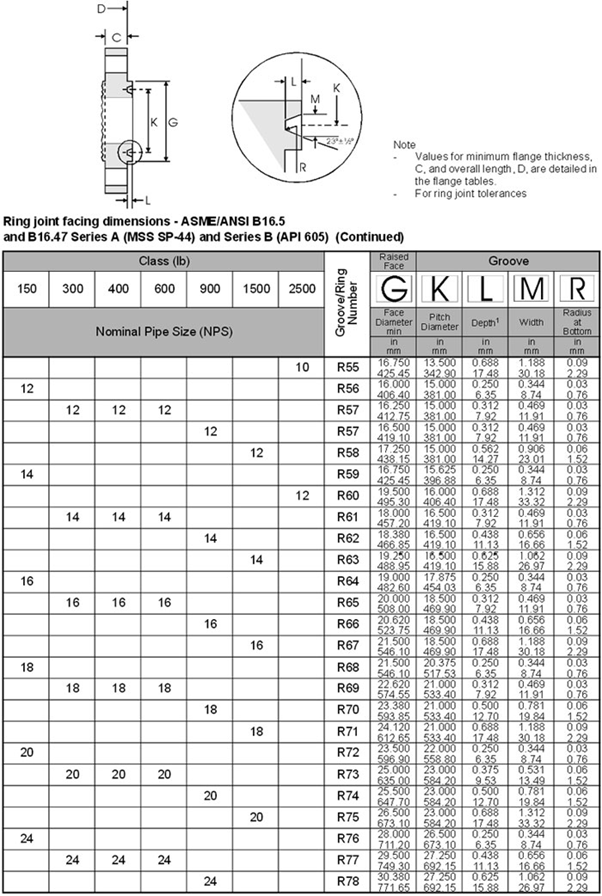

Dimension Chart of Metal Flanges

Application Area of Metal Flanges

Chemical Mining
Petrochemical Construction
Refineries Shipbuilding
Fertilizers Steel Plant
Power Plant Offshore
Nuclear Power Defence
Oil & Gas Ports
Paper Railway
Breweries Oil Mills
Cement Engineering Co. &
Sugar Government Org. etc.
Contact Grand Metal Corporation today for a best offer & competitive quotation…
