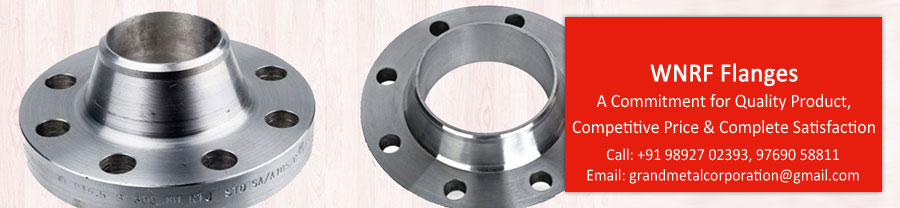

WNRF Flanges
Manufacturer of comprehensive range WNRF Flanges (Weld Neck Raised Face Flanges), Look for WNRF Flanges best price
your source for WNRF Flanges, Manufacturer and Supplier of the most qualitative range of WNRF Flanges
Grand Metal Corporation is acknowledged as a manufacturer, exporter & suppliers of WNRF Flanges, available in a variety or grades, materials, and finishes, in metric and inch sizes. full line fastener distributor specializing in industrial products for companies involved in Equipment Manufacturing, Mining, Oil Refineries, Chemical manufacturing, Steel and Aluminium Manufacturing, Utilities and Transportation, and Industrial Construction.
Grand Metal Corporation carries a variety of WNRF Flanges from Carbon Steel, Stainless Steel and High Nickel Alloy -F467 NiCu 400 (Monel) and commercial 18-8/304, 316L Stainless Steel. We supply WNRF Flanges at Best suitable price.
Type of WNRF Flanges like SORF, SWRF, WNRF, BLRF, LAP Joint, Reducing, Spectacle, Threaded & As per your Drawing in International Standard like ASTM, BS, IS Etc. as per ASA, DIN Table etc. with Manufacturer Test Certificate & IBR Test Certificate.
Useful Information of WNRF Flanges
Specification
| Size |
½" (15 NB) to 48" (1200NB) |
| Class |
150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc. |
| Standards |
ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 |
| DIN |
DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673 |
| B.S |
BS4504 , BS4504, BS1560, BS10 |
| Flange Face Type |
Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| Coating/Surface Treatment |
Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized |
Grades & Material
Stainless Steel Weld Neck Raised Face Flanges:
ASTM A182, A240 F 304, 304L, 304H, 316, 316Ti, 316H, 316L, 316LN, 309S, 309H, 310S, 310H,317, 317L, 321, 321H, 347, 347H, 201, 202, 904L
Carbon Steel Weld Neck Raised Face Flanges:
ASTM A105/A105N, A350 LF1, LF2 CL1/CL2, LF3 CL1/CL2, A694 F42, F46, F48, F50, F52, F56, F60, F65, F70, A516.60, 65, 70 (Spectacle Blind Flange, Spacer Ring/Spade Flange), Steel RST37.2, C22.8
Alloy Steel Weld Neck Raised Face Flanges:
ASTM A182 F1, F5, F9, F11, F22, F91
Nickel Alloy Weld Neck Raised Face Flanges:
ASTM SB564, SB160, SB472, SB162 Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020).
Copper Alloy Weld Neck Raised Face Flanges :
ASTM SB 61 , SB62 , SB151 , SB152 UNS No. C 70600 (Cu-Ni 90/10), C 71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200, LF2 , LF3.
Duplex Steel Weld Neck Raised Face Flanges :
ASTM A182, A240 F 44, F 45, F51, F 53, F 55, F 60, F 61
Dimensions
| ANSI, ASME, ASA, B16.5 150lb/sq.in. WELDING NECK FLANGE RF |
| ø |
D |
b |
g |
m |
a |
J* |
h |
k |
Holes |
l |
Kg. |
| 1/2" |
88,9 |
11,1 |
34,9 |
30,2 |
21,3 |
15,7 |
47,6 |
60,3 |
4 |
15,9 |
0,500 |
| 3/4" |
98,4 |
12,7 |
42,9 |
38,1 |
26,7 |
20,8 |
52,4 |
69,8 |
4 |
15,9 |
0,700 |
| 1" |
107,9 |
14,3 |
50,8 |
49,2 |
33,5 |
26,7 |
55,6 |
79,4 |
4 |
15,9 |
1,100 |
| 1 1/4" |
117,5 |
15,9 |
63,5 |
58,8 |
42,2 |
35,1 |
57,1 |
88,9 |
4 |
15,9 |
1,500 |
| 1 1/2" |
127,0 |
17,5 |
73,0 |
65,1 |
48,3 |
40,9 |
61,9 |
98,4 |
4 |
15,9 |
1,800 |
| 2" |
152,4 |
19,0 |
92,1 |
77,8 |
60,3 |
52,6 |
63,5 |
120,6 |
4 |
19,0 |
2,700 |
| 2 1/2" |
177,8 |
22,2 |
104,8 |
90,5 |
73,1 |
62,7 |
69,8 |
139,7 |
4 |
19,0 |
4,400 |
| 3" |
190,5 |
23,8 |
127,0 |
107,9 |
88,9 |
78,0 |
69,8 |
152,4 |
4 |
19,0 |
5,200 |
| 3 1/2" |
215,9 |
23,8 |
139,7 |
122,2 |
101,6 |
90,2 |
71,4 |
177,8 |
8 |
19,0 |
6,400 |
| 4" |
228,6 |
23,8 |
157,2 |
134,9 |
114,3 |
102,4 |
76,2 |
190,5 |
8 |
19,0 |
7,500 |
| 5" |
254,0 |
23,8 |
185,7 |
163,5 |
141,2 |
128,3 |
88,9 |
215,9 |
8 |
22,2 |
9,200 |
| 6" |
279,4 |
25,4 |
215,9 |
192,1 |
168,4 |
154,2 |
88,9 |
241,3 |
8 |
22,2 |
11,000 |
| 8" |
342,9 |
28,6 |
269,9 |
246,1 |
219,1 |
202,7 |
101,6 |
298,4 |
8 |
22,2 |
18,300 |
| 10" |
406,4 |
30,2 |
323,8 |
304,8 |
273,0 |
254,5 |
101,6 |
361,9 |
12 |
25,4 |
25,000 |
| 12" |
482,6 |
31,7 |
381,0 |
365,1 |
323,8 |
304,8 |
114,3 |
431,8 |
12 |
25,4 |
39,000 |
| 14" |
533,4 |
34,9 |
412,7 |
400,0 |
355,6 |
336,5 |
127,0 |
476,2 |
12 |
28,6 |
51,000 |
| 16" |
596,9 |
36,5 |
469,9 |
457,2 |
406,4 |
387,3 |
127,0 |
539,7 |
16 |
28,6 |
60,000 |
| 18" |
635,0 |
39,7 |
533,4 |
504,8 |
457,2 |
438,1 |
139,7 |
577,8 |
16 |
31,7 |
71,000 |
| 20" |
698,5 |
42,9 |
584,2 |
558,8 |
508,0 |
488,9 |
144,5 |
635,0 |
20 |
31,7 |
88,000 |
| 22" |
749,3 |
46,0 |
641,2 |
609,6 |
558,8 |
539,7 |
149,2 |
692,1 |
20 |
34,9 |
1,02,000 |
| 24" |
812,8 |
47,6 |
692,1 |
663,6 |
609,6 |
590,5 |
152,4 |
749,3 |
20 |
34,9 |
1,19,000 |
Contact Grand Metal Corporation today for a best offer & competitive quotation…
Call: +91 98927 02393, 97690 58811
